Package Dimensions : 32 x 25 x 8 cm; 2 kg
Date First Available : 6 Jun. 2023
Manufacturer : Yahboom
ASIN : B0C77TK8S3
Item model number : Orin NX 8GB Basic Kit
Country of origin : China
Guaranteed software updates until : unknown
Best Sellers Rank: 176,241 in Computers & Accessories (See Top 100 in Computers & Accessories) 1,532 in Motherboards
Customer reviews: 5.0 5.0 out of 5 stars 4 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });
【Orin NX SUB core parameters】★AI performance: 117-157 TOPS Support SUPER upgrade/update★GPU: 1024-core N-VI-DIA Ampere architecture GPU, 32 Tensor Core★CPU: 8-core Arm Cortex-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 ★Memory: 8GB/16GB 128-bit LPDDR5 | 102.4GB/s ★Storage: Supports external NVMe; can run all modern artificial intelligence models. The power can be configured between 10W-40W, and the performance is greatly improved. (8GB/16GB optional)
【Rich interfaces and powerful functions】 Built-in M.2 Key E wireless network module, the transmission speed is faster and more stable, and it supports 1000Mbps Ethernet, which can meet the needs of different network application scenarios. Built-in PWM adjustable fan, active heat dissipation, high-efficiency heat dissipation design; standard 256GB SSD read speed is more than 7 times faster than SD card.
【Official carrier board performance】 This product adopts a new official carrier board design, uses more voltage-resistant components, and a more stable high-current power supply solution supports 40W power mode, supports POE power supply and POE power supply output, and supports one-button power on and off. Not only can avoid insufficient power to affect product performance, but also support more power supply schemes.

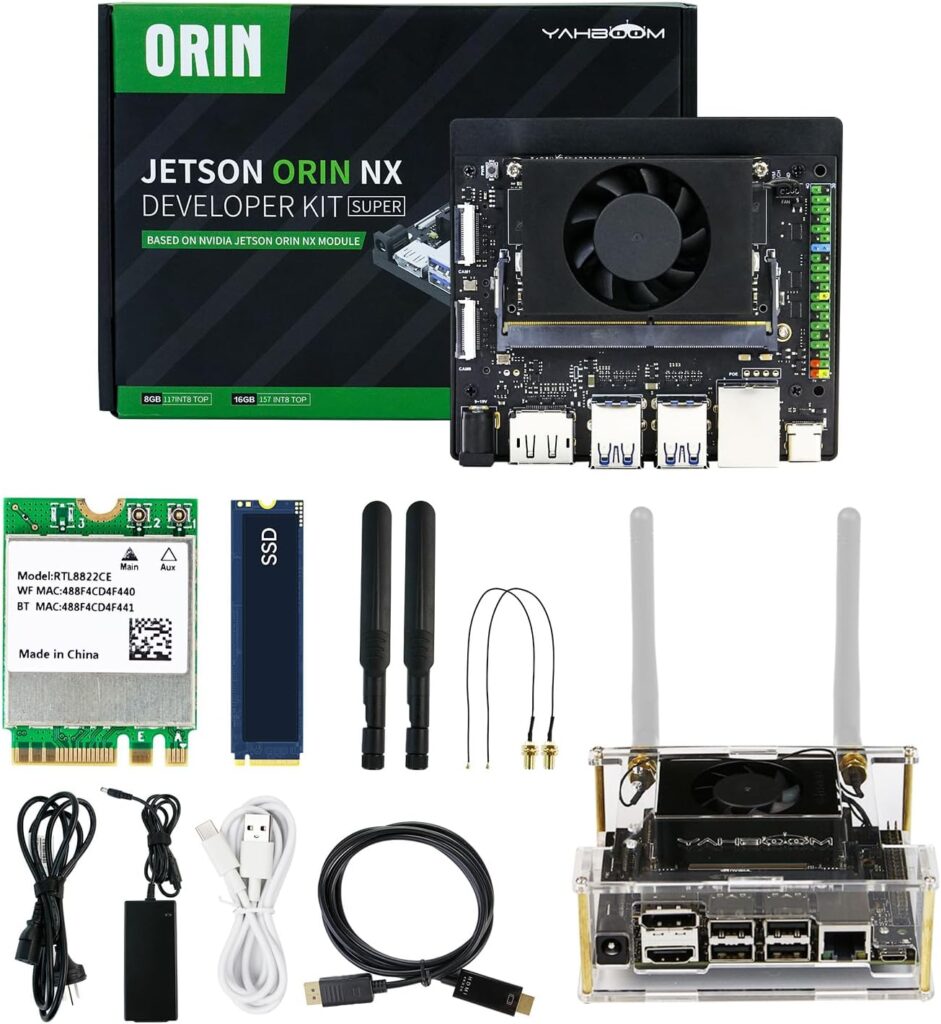

【Packing list】Developer Kit: Jetson Orin NX development board*1 (core module and carrier card installed, 8G or 16G optional), power supply*1, antenna*2, Wi-Fi card*1 (installed), SSD*1; Basic Kit: Developer Kit + DP-HDMI cable*1 + Type-C cable*1 + Acrylic shell*1；Advanced kit: basic kit + IMX219-77°*1, camera case*1; Mini PC Kit: Basic Kit – Acrylic Shell + Cube Shell + USB Camera; Flagship Kit: Mini PC Kit + 15.6-inch Display + Wireless Keyboard and Mouse
【Wide application scenarios】This product is suitable for AI robots, drone data processing, urban road identification, medical data processing, robot dogs and other fields. Yahboom has a strong after-sales technical support team, providing Ubuntu 22.04 system and AI vision and ROS development materials. Provide ROS2 related information.
